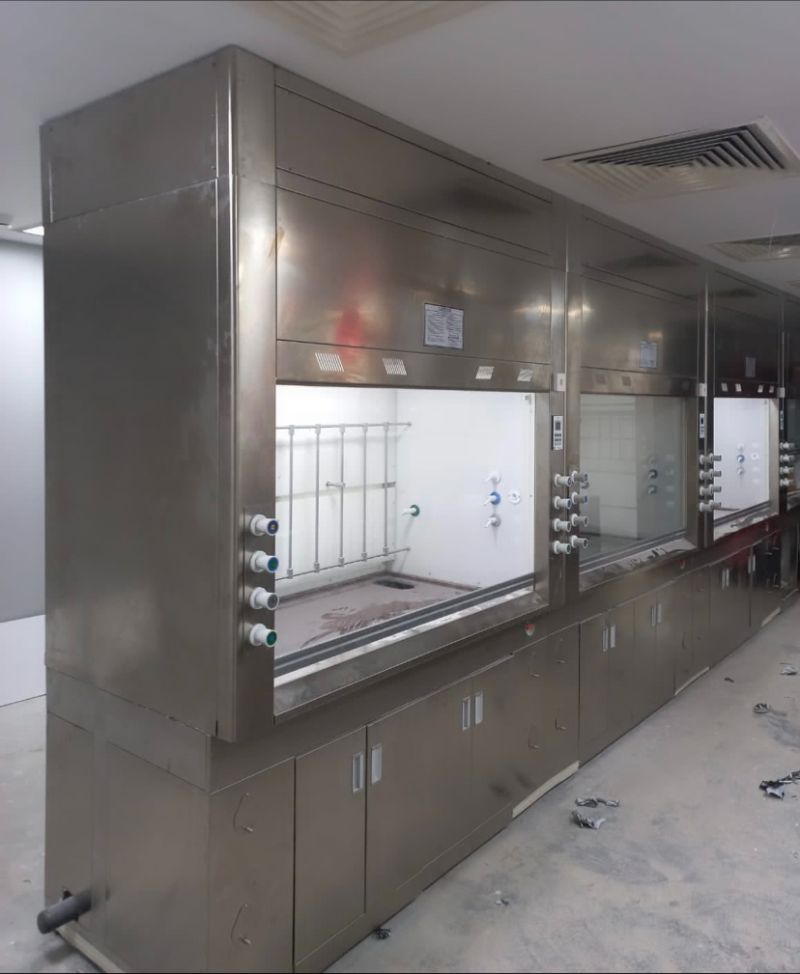

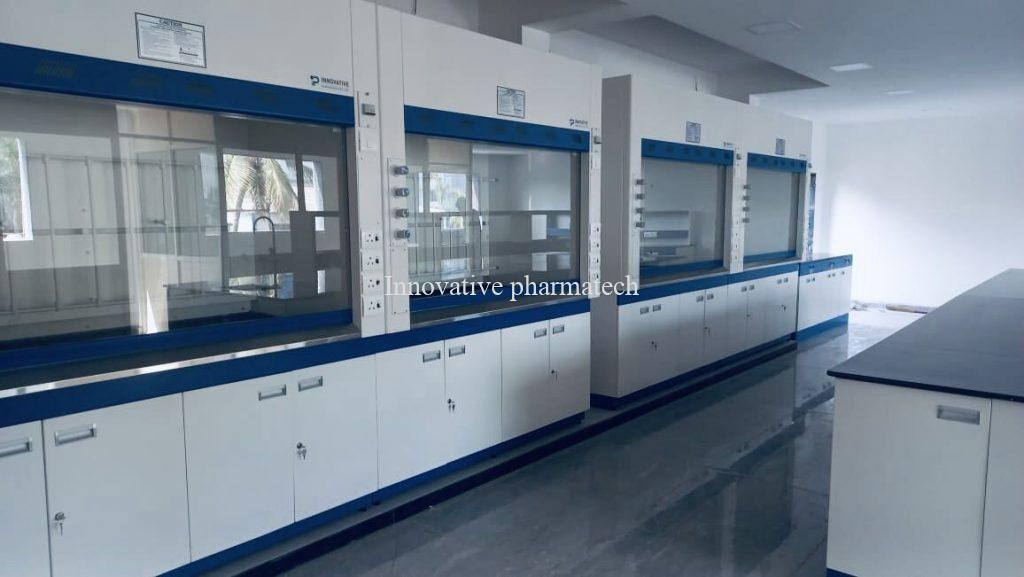

Laboratory fume hoods are a type of ventilation system with the primary function is to exhaust chemical fumes, vapors, gasses, dust, mist, laboratory hoods, SS fume hood, and aerosol. Fume hoods also serve as physical barriers between reactions and the laboratory, offering a measure of protection against inhalation exposure, chemical spills, run-away reactions, and fires. Innovative Pharmatech is an expert leading laboratory fume hood manufacturers in Ahmedabad, India.
A typical lab fume hood has a box-like structure with a moveable sash window. Experimental procedures are performed within the hood which is consistently and safely ventilated, usually by means of an extract blower and ductwork. Chemical fumes are exhausted and diluted many times over in the atmosphere and has a negligible effect on human health. When environmental concerns are of importance, an extract treatment system, often referred to as a scrubber is installed to remove most of the vapors from the exhaust air stream.
The fumehood functions by maintaining a relatively negative pressure in the interior of the hood to prevent any contaminant from escaping while drawing air in through the hood opening at a consistent rate. A suitable hood face velocity (the speed at which air is drawn into the hood) is of importance to the safe and effective operation of a fume hood. While excessive face velocities can often result in turbulence and reduce containment, insufficient velocities can also compromise hood performance.
In general, a hood’s face velocity is recommended to be between 0.3 m/s (60 fpm) and 0.5 m/s (120 fpm), however it is important to check with local safety regulations on the face velocity recommendation before using the fume hoods.

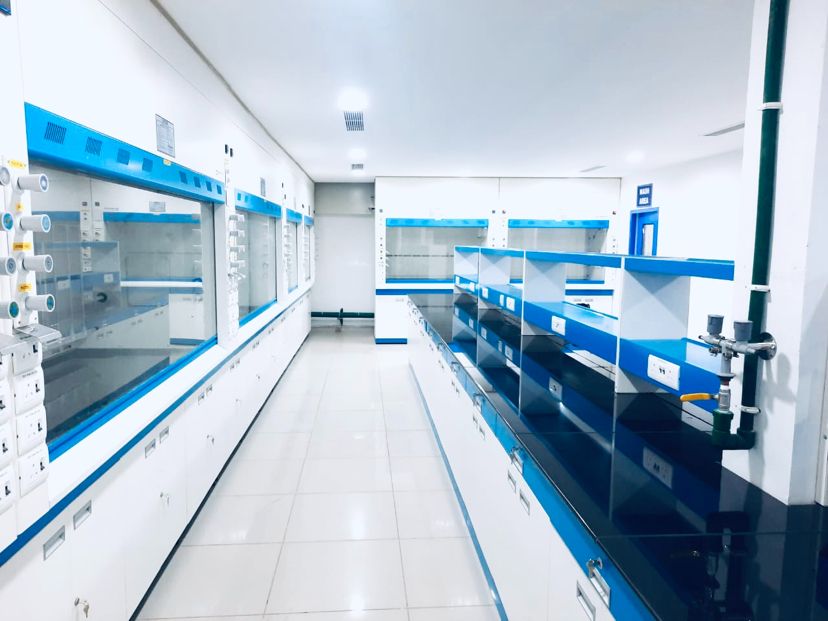

TYPE OF FUME HOODS

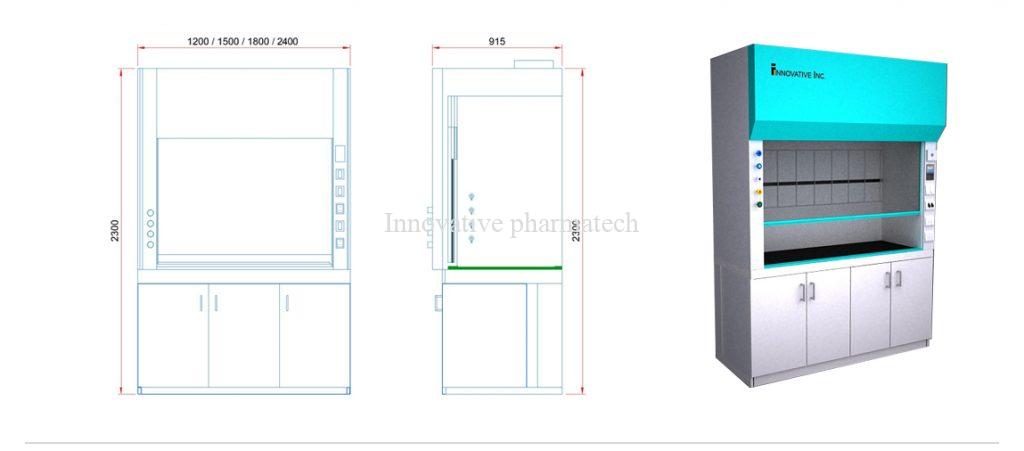

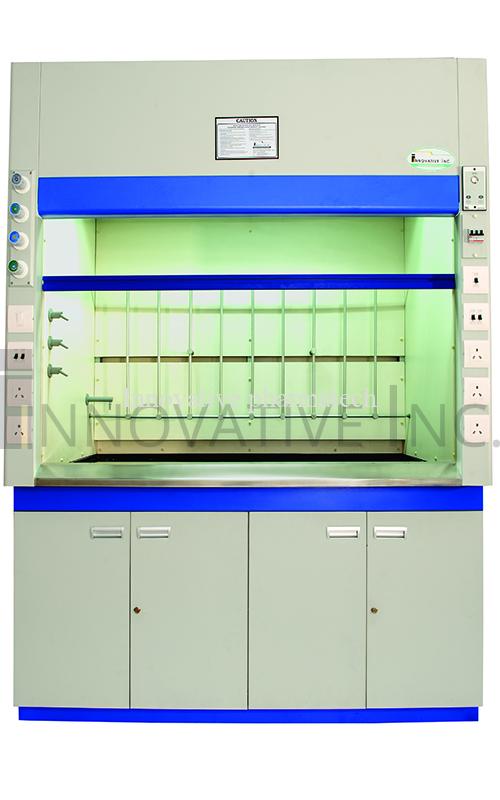

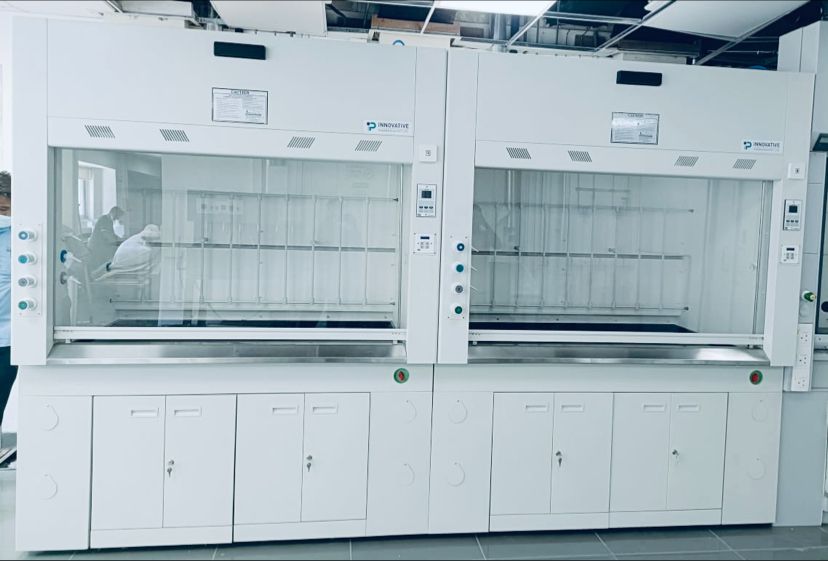

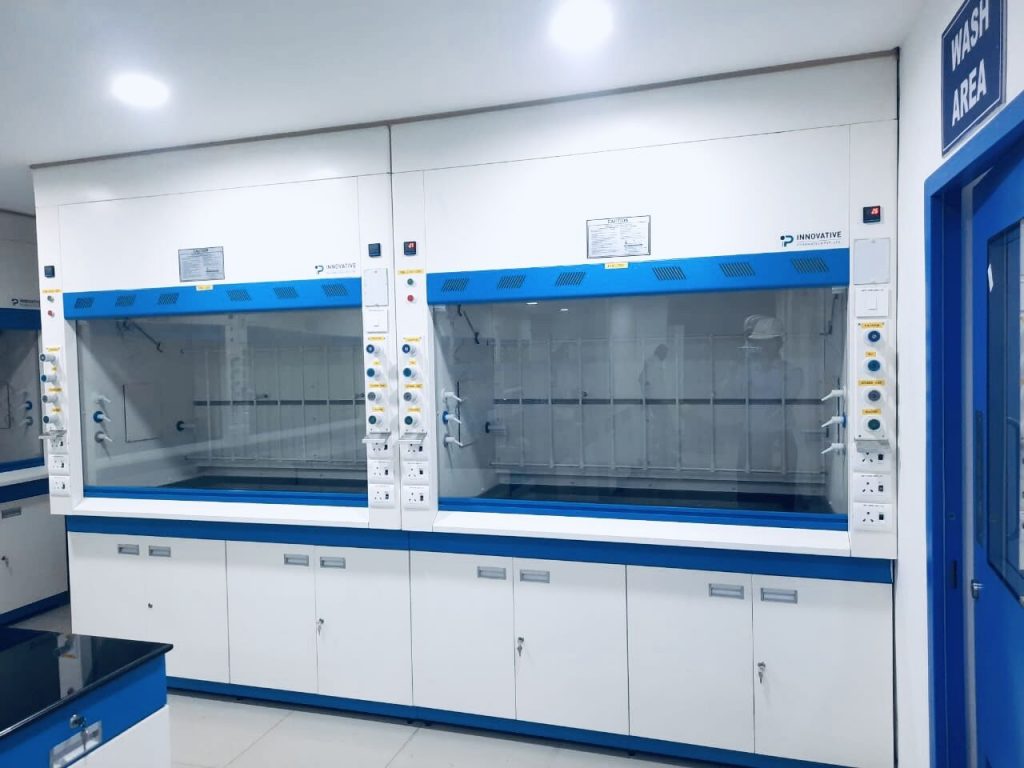

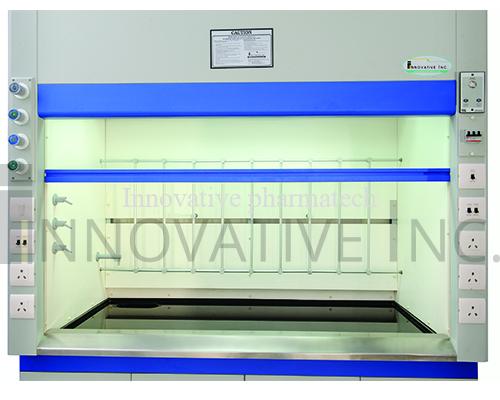

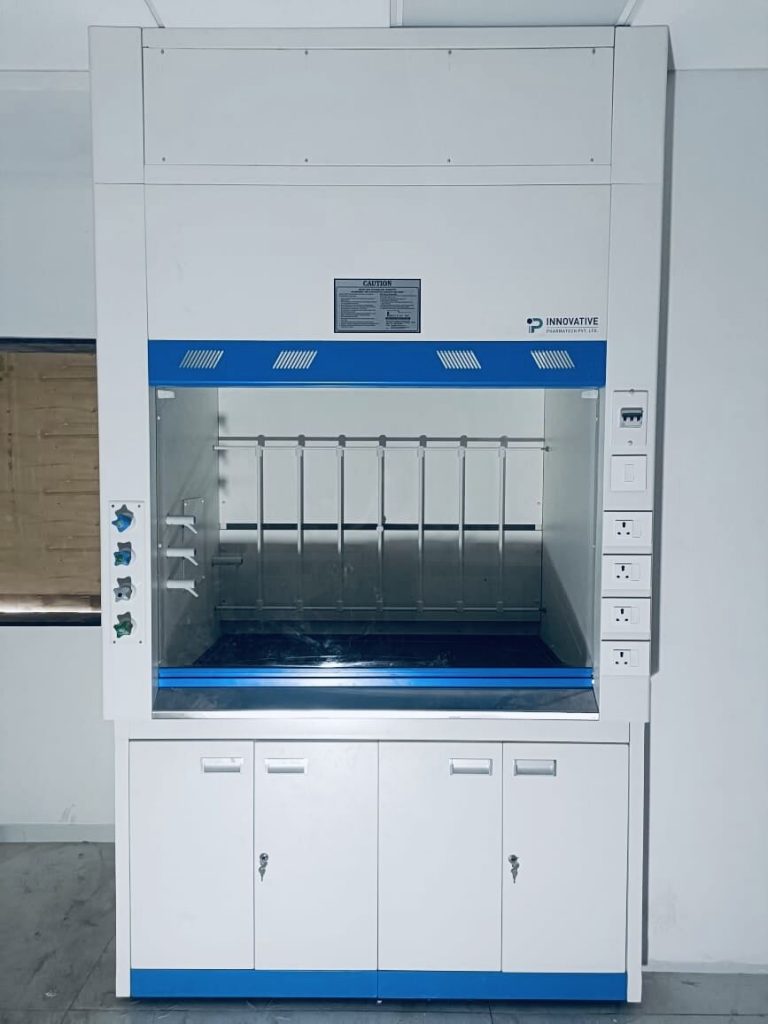

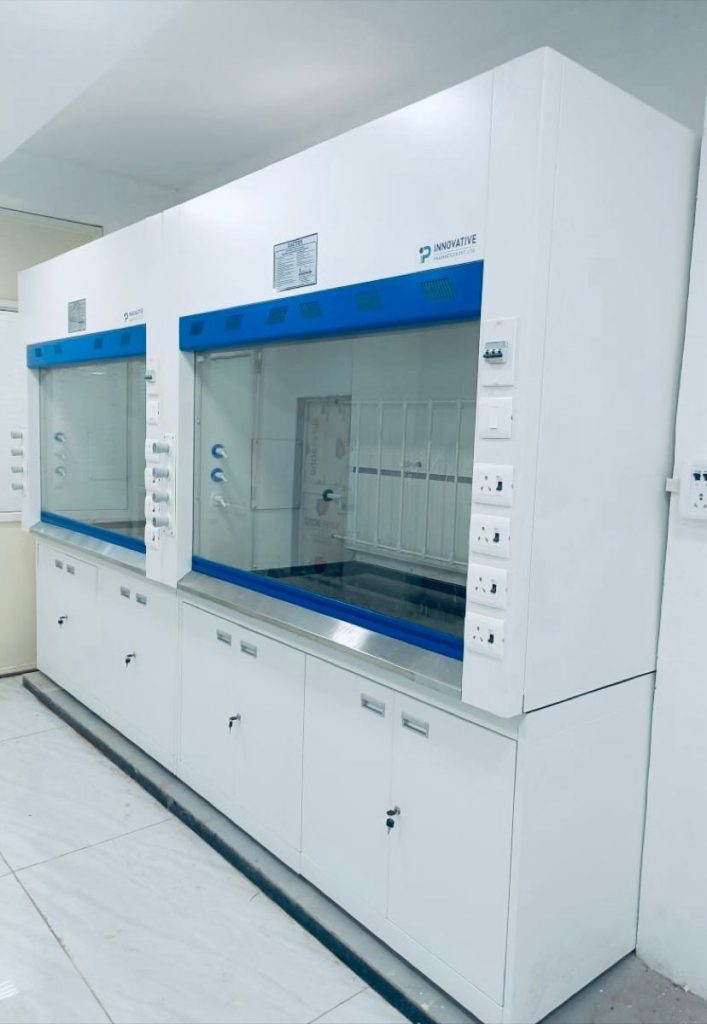

STD. BENCH TYPE FUME HOOD
Std. Bench type of lab fume hood is characterized by an std. worktop height which results in a std. working height for the operator. This allows Std. height of equipment to be installed and mounted in the work chamber, tested in acc. with EN 14175.

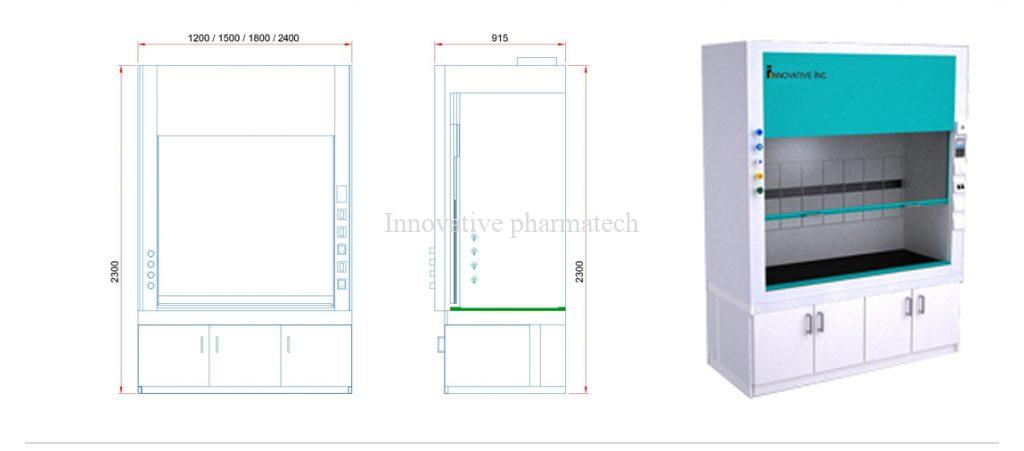

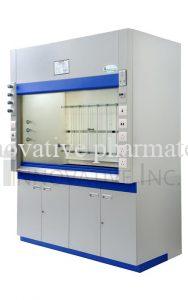

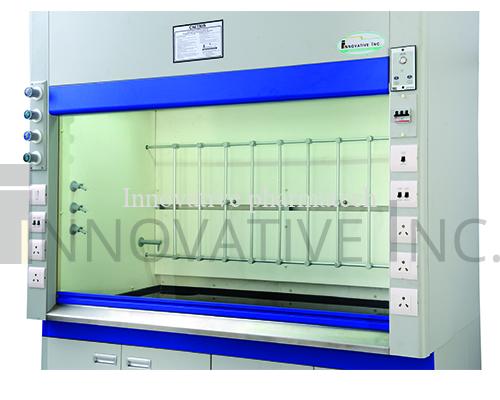

LOW BENCH TYPE OF FUME HOOD
Low Bench type of Fume Hood is characterized by a low worktop height which results in a large working height for the operator. This allows tall distillation equipment to be installed and mounted in the work chamber, tested in acc. with EN 14175. Rest of the items remains same as Std. Bench Type of Fume Hood.

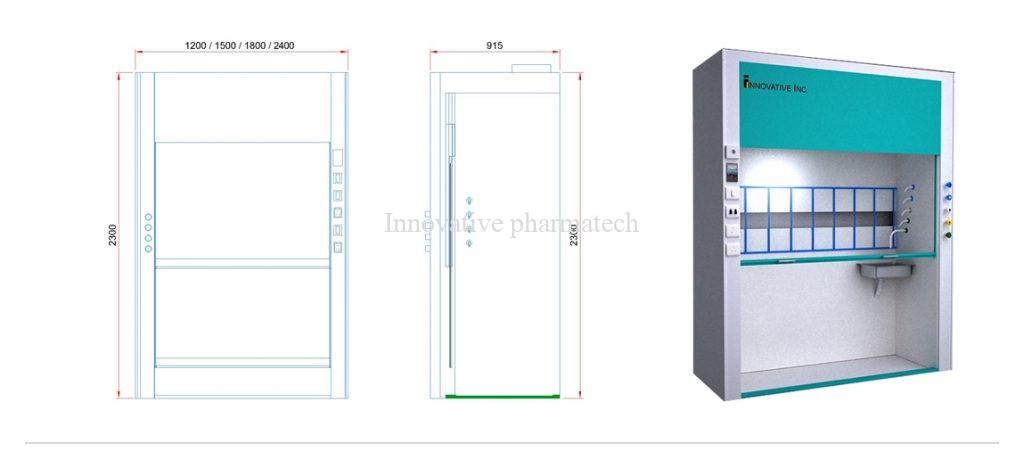

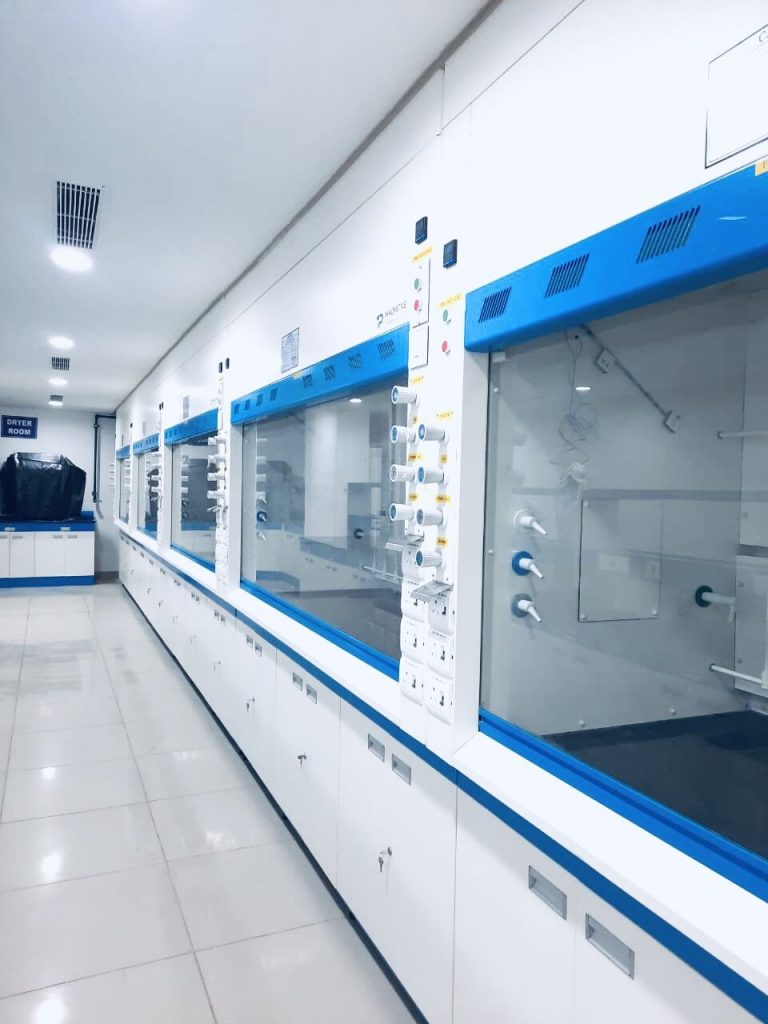

WALKING TYPE OF FUME HOOD
Walking / Floor mounted fume hoods are used for applications which require large apparatus. As the name implies, these hoods are floor mounted without any work surface. This facilitates the transfer of equipment and materials into, and out from the hood.
EDUCATION FUME HOOD
Education Fume Hood has all 4 sides made of safety glass, and this hood is commonly used in educational institutions to allow students to easily view the teachers’ demonstrations inside the fume hood from all angles, enhancing efficiency in teaching laboratories, tested in acc. with EN 14175.

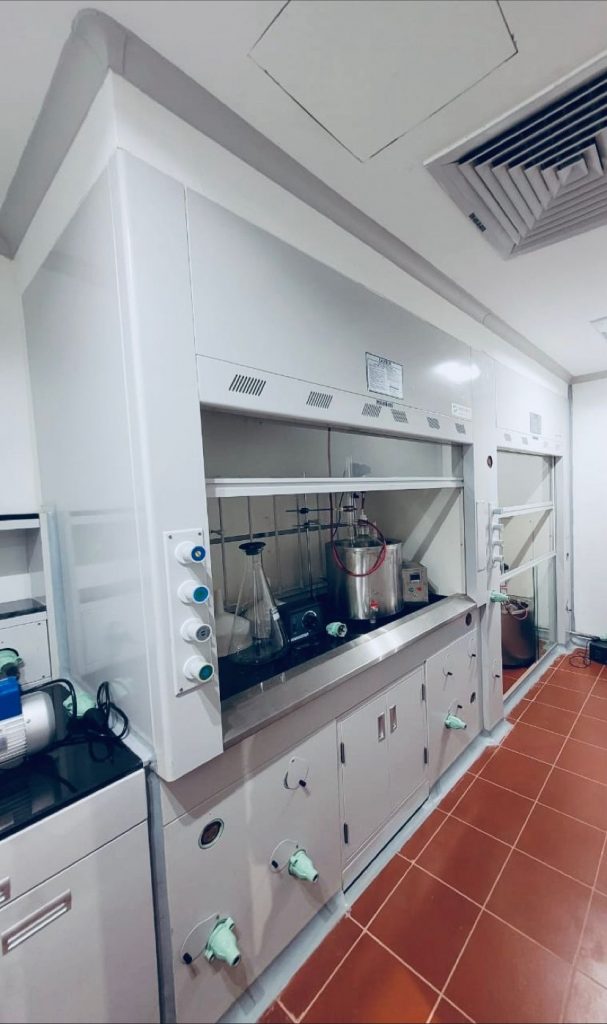

The visible part of the lab fume hood serves to contain hazardous gases and vapors.
Moveable partitions used to create slotted openings along the back of the hood body. Baffles keep the airflow uniform across the hood opening, thus eliminating dead spots and optimizing capture efficiency.
The sliding “door” to the hood. By using the sash to adjust the front opening, airflow across the hood can be adjusted to the point where capture of contaminants is maximized. Each hood has its optimum sash configuration. The sash should be held in this position when working in the hood and closed completely when the hood is not in use. The sash may be opened completely to set up equipment, but must be returned to the optimum setting prior to generating contaminants inside the hood. Hoods are equipped with one of three types of sashes:
provide the greatest overall access and are the most common.
sashes provide the best access to the top interior of the hood, but do not provide access to the entire width at the same time. However, they can be positioned as a body shield to protect the operator, while enabling access through the sides.
COMBINATION VERTICAL AND HORIZONTAL:
combine horizontal sash panes, in a vertical rising frame. As such, they offer the advantages of both vertical and horizontal sashes.
located along the bottom and side edges the airfoil streamlines airflow into the hood, preventing the creation of turbulent eddies that can carry vapors out of the hood. The space below the bottom airfoil provides source of room air for the hood to exhaust when the sash is fully closed. Removing the airfoil can cause turbulence and loss of containment.
generally a laboratory bench top, or the floor in the case of a floor-mounted hood, this is the area where the work is conducted.
the exhaust plenum helps distribute airflow evenly across the hood face. Materials such as paper towels drawn into the plenum can create turbulence in this part of the hood, resulting in areas of poor airflow and uneven performance.
the imaginary plane between the bottom of the sash and the work surface. Hood face velocity is measured across this plane.
FACE VELOCITY TEST

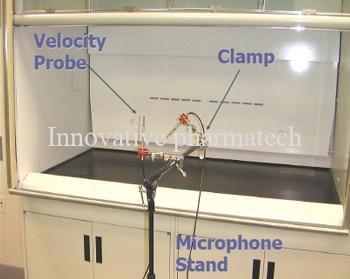

In this case the velocity in the front of the fume hood is measured using an anemometer at 6 different locations with 18 inch sash opening. The average reading as per the norms should confirm to 100 FPM
TRACER GAS TEST

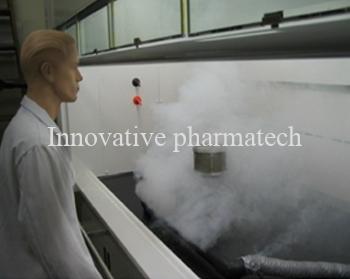

In this test a smoke generating machine is been used to generate smoke and the gas is traced for correct air flow dynamics. The gas should flow through the baffles as required.
In this test HF6 gas is used to check if the containment of air in the fume hood is proper or not. HF6 is a gas which has the highest density.
FACE VELOCITY TEST
TRACER GAS TEST
